FT300-A - Air-Cooled Compact Fire-Fighting Pump -

  • Overview
  • Description of Products
  • Features
  • Specifications

FT300-AAir-cooled 2 Cycle gasoline engine

FT300-A
FT300-A

Description of FT300-A

Compact Fire-Fighting pump with highest performance in its class.

New compact design and low gravity for your safety operation, and new engine that delivers high performance at low cost.

SHIBAURA proudly announces new multi-purpose economic, high-performance Portable Fire-Fighting Pump to protect your life, property, and natural resources from Fire.

FT300-A is a compact Fire-Fighting pump combines high performance with simple design.

TF520MH

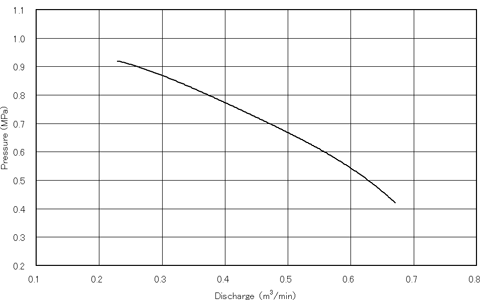

FT300-A Performance curve

FT300-A Performance curve

Feature

1. FUEL FEEDING SYSTEM (separate fuel feeding system)

TF520MH

FT300-A is equipped with Separate Fuel Feeding System which is commonly used system in automobiles.
Provide you with optimum gasoline/oil mixing rate under any circumstances at any time.
The "automatic engine stop system" automatically stops the engine if the oil level is too low, and let you to know the decrease level of oil by displaying LED light on OK monitor.

2. DIRECT-ACTING ENGINE GOVERNORS

TF520MH

Governor for providing optimum oil supply rate according to the pressure level. Oil supply rate is always appropriate even if you attached various kinds of nozzles, as the DIRECT-ACTING ENGINE GOVERNORS can provide optimum oil supply rate according to the supply pressure level.
The maximum efficiency and lower exhaust gas which gives you much longer engine durability.

3. AUTOMATIC CHOKE SYSTEM FOR CARBURETOR

TF520MH

An air temperature sensor and engine temperature sensor adjust choke valve automatically for your easy engine starting.

4. AUTO-DECOMPRESSION

TF520MH

Auto - Decompression Recoil Pull for your easy manual starting.
Unlike conventional method which release the pressure, the engine can be operated at full power at all time during the discharge.

5. FULL-COVERED MODEL

TF520MH

The model has full covered side for your comfortable, safety and convenience operation with one-piece full open cover designed for simple access to the engine.
Easy cover removal without any tools for your easy maintenance.

6. INTEGRATED CONTROL PANEL

TF520MH

All the control switches are integrated into one single open panel which gives the operator an excellent visibility and faster operation speed.

7. OILLESS VACUUM PUMP

TF520MH

Oilless vacuum pump uses high-strength carbon blades which does not need lubricating oil inside the pump.
Harmless method to human and environment, as its doesn't discharge oily water on the ground.

8. QUICK VALVE

TF520MH

Square frame Quick Valve Lever which allow you to operate valve faster and easier.

9. ONE-TOUCH DRAIN COCK

TF520MH

Fuel tank has one-touch drain cock to drain all the fuel from the carburetor at the time of long storage.
Also have a waste fuel/oil Catch tank as standard equipment.

Specifications

  FT300-A
DIMENSION (mm) 601 x 463 x 515
DRY WEIGHT (kg) 44 kg
PUMP
MODEL SHIBAURA C505
TYPE High Pressure One Stage Turbine Pump
DISCHARGE PRESSURE 0.5 MPa, 568 L/min, 1m suction head
0.5 MPa, 550 L/min, 3m suction head
0.8 MPa, 318 L/min, 1m suction head
0.8 MPa, 300 L/min, 3m suction head
DISCHARGE Dia/Tread 65mm
SUCTION Dia/Tread 65mm
NOZZLE RATED /HIGH 19.0mm / 14.0mm
ENGINE
MODEL SHIBAURA E200
TYPE Air Cooled Two-Cycle Gasoline Engine
COOLING SYSTEM AIR COOLED TYPE
NO OF CYLINDER One Cylinder
DISPLACEMENT 200cc
BORE 68mm x 55mm
RATED OUTPUT 8.8kW / 12PS
STARTING Electric Starter / Manual Starter
AUTO DECOMPRESSION YES
IGNITION CD ignition
FUEL TANK CAPACITY 4.0L
FUEL CONSUMPUTION 5.4L
FUEL SYSTEM Auto Choke Carburetor
FUEL TYPE Regular Unleaded Gasoline
LUBRICATION Separate Oil Feeding System
MIXING RATIO Governor
LUBRICATION OIL 2-Cycle Engine Oil
OIL TANK 0.5L
SPARK PLUG NGK B9HS
OPERATION LIGHT 12V - 3W x 2
OIL-LESS VACUUM PUMP
MODEL 4-VANE ECCENTRIC ROTARY TYPE
BLADE TYPE HIGH STRENGTH CARBON BLADE
MAXIMUN SUCTION HEIGHT 9M
STANDARD ACCESSORIES
Battery Charger, Tool Kit, Pump Cover, Spark Plug
