TF516MH-A - Air-Cooled Fire Pump -

  • Overview
  • Description of Products
  • Features
  • Specifications

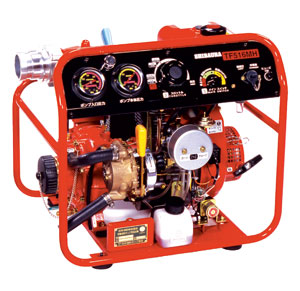

TF516MH-A Air-cooled 2 Cycle gasoline engine

TF516MH-A
TF516MH-A

Description of TF516MH-A

Auto choke carburetor for easy operation and handling.

Just turning main switch will start the engine immediately, and you can start full throttle operation without engine warm-up.

Equipped with Quick Valve Lever which allow you to operate valve faster and easier.

The stainless pump shaft is mounted separately from engine shaft, so you can easily replace the belt without any disassembly.

Newly developed lubricating oil circulation system provide you the low exhaust smoke as the lubricating oil is supplied by maintaining the proper mixing ratio.

TF516MH-A

TF516 Performance curve

TF516MH-A

Feature

1. Auto Choke Carburetor System

TF516MH-A

Both of air and engine thermometer can work a good adjustment for choke valve automatically, and gives you easy starting by just turning the main switch on.

2. Advance fuel feeding system

TF516MH-A

Advanced fuel feeding system provide you with optimum gasoline / oil mixing rate under any circumstances at any time.

3. Oilless Vacuum Pump

TF516MH-A

Oilless vacuum pump uses high-strength carbon blades which does not need lubricating oil inside a pump. Harmless method for human and enviroment, as its does not discharge oily water on the ground.

Starting System

Recoil starter system with electronic ignition + pull-rope recoil starter

Specifications

TF516MH-A

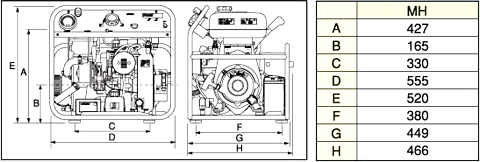

DIMENSION (mm) 555 x 466 x 520
DRY WEIGHT (kg) 41
PUMP
MODEL SHIBAURA C505
TYPE High Pressure One Stage Turbine Pump
DISCHARGE PRESSURE 0.5 MPa, 560 L/min, 1m suction head
0.5 MPa, 533 L/min, 3m suction head
0.8 MPa, 280 L/min, 1m suction head
0.8 MPa, 257 L/min, 3m suction head
DISCHARGE Dia/Tread 65 mm
SUCTION Dia/Tread 65 mm
NOZZLE RATED /HIGH
ENGINE
MODEL SHIBAURA E180A
TYPE AiR Cooled Two-Cycle Gasoline Engine
COOLING SYSTEM AIR COOLED TYPE
NO OF CYLINDER One Cylinder
DISPLACEMENT 182 cc
BORE 65mm X 55mm
RATED OUTPUT 8.1kw / 11ps
STARTING Electric Starter / Manual Starter
AUTO DECOMPRESSION NO
IGNITION CD ignition
FUEL TANK CAPACITY 4.2 L
FUEL CONSUMPUTION 4.6 L
FUEL SYSTEM Auto Choke Carburetor
FUEL TYPE Regular Unleaded Gasoline
LUBRICATION Separate Oil Feeding System
MIXING RATIO Governor
LUBRICATION OIL 2-Cycle Engine Oil
OIL TANK 500ml
SPARK PLUG NGK B6HS
OPERATION LIGHT 12V10W
LIGHT 12V -35W
OIL-LESS VACUUM PUMP
MODEL 4-VANE ECCENTRIC ROTARY TYPE
BLADE TYPE HIGH STRENGTH CARBON BLADE
MAXIMUN SUCTION HEIGHT 9M
STANDARD ACCESSORIES
Battery Charger, Tool Kit, Pump Cover, Spark Pulg
